Roman Glass Production History
Roman glass objects have been found all across the former Roman Empire, from homes and workshops to gravesites. The main use of glass was for making vessels, though it was also shaped into mosaic tiles and window panes. Roman glassmaking grew out of older Hellenistic methods, which started with casting deeply colored glass into thick-walled vessels.
In the first century AD, the glass industry went through major changes. A new technique called glass blowing took over, allowing workers to make vessels faster and more easily. Clear or pale blue glass, often called "aqua," became the standard. At the same time, the production of raw glass and the creation of finished items were done in different places. By the end of that century, large-scale manufacturing made glass common and affordable. Still, some high-end pieces were complex, expensive, and meant to compete with luxury materials like silver and gold.
Even with the rise of glassmaking during the Hellenistic period, early Romans had no Latin word for glass at the start of the first century AD. But glass was already being made in Roman territories by the late Republican era, using Hellenistic tools and techniques. Most of the early methods took time and effort. The vessels produced were thick and needed a lot of finishing work. Because the main ingredient, natron, had to be imported, early Roman glass was costly and seen as a luxury item.
During the Roman Republic, glassworking remained a small trade. That changed in the early first century AD. The rise of Roman power after decades of civil war, followed by the peace and order brought under Augustus, helped the craft expand quickly. More types of vessels were produced and spread across the empire. Glass objects even made it as far as Afghanistan, India, and China. Roman glass reached the Kushan Empire and the Han Empire, including an early piece found in a tomb in Guangzhou, China, which likely came through trade by sea.
Around 20 AD, glass blowing took hold in parts of the eastern Mediterranean and moved across the empire. The method let workers inflate molten glass into molds or shape it freely. It used less material and cut down production time. Earlier casting methods continued into the reigns of Augustus and the Julio-Claudian emperors, but by the mid to late first century, blown glass dominated.
Blown glass lowered costs. By the middle of the first century AD, everyday Romans could afford glass vessels. Writers noted that some cups cost no more than a cheap metal coin. Glass workshops also expanded their output to include mosaic tiles and flat window panes. Improved furnace designs helped melt large quantities of glass, making bulk production easier.
At the same time, fine glassmaking didn't disappear. Luxury items like cage cups, with detailed outer frames, were difficult to make and very expensive. Cameo glass, where layers of colored glass were carved into detailed scenes, also remained popular. One famous example is the Portland Vase, made early in the first century AD. Mold-blown pieces with maker marks, like those made by Ennion, show how refined Roman glassware could be.
Roman glass was made mostly with sand, soda (in the form of natron), and lime. The main source of natron was Egypt, which gave Roman glass its consistent chemical makeup. Colors came from different metal oxides. Iron gave the natural aqua tint. Adding manganese or antimony made the glass colorless. Copper and cobalt added shades of green and deep blue. Sulfur mixed with iron could create amber tones, while lead produced rich green. Some special glasses even used tiny gold and silver particles to create color-changing effects.
Glass was often recycled. Roman writers mentioned that broken pieces were melted down again. Archaeological finds support this, with bundles of glass shards stored for reuse instead of being tossed away. Glass would be melted in pots or large tank furnaces and then shipped as raw material to smaller workshops.
Large-scale production sites were placed near resources like sand, natron, and fuel. These sites, mostly in the eastern Mediterranean, supplied raw glass to smaller workshops throughout the empire. As demand grew, more working sites opened in Italy, Gaul, and beyond. By the late first century BC, glass production spread to Rome, Campania, the Po Valley, Cologne, the Rhineland, and Syria.
Each region adapted the craft to local tastes. Italy was an early leader in colored glass vessel exports. Cologne became a major production center, known for decorated vessels with raised dots and other patterns. Its museum holds thousands of examples. In the third century, northern workshops even exported glass back to Italy. In later centuries, Italy regained its leading role.
Glass decoration methods evolved over time. Early cast glass used layered and patterned styles like mosaic, lace, and marbling. These designs faded after the mid-first century. Gold-glass involved placing gold leaf between two glass layers, often used for cups and grave markers in later centuries. Mosaic glass tiles were made in similar ways. Other methods included engraving, painting with enamel, heating to soften and reshape (slumping), cameo carving, and detailed cutting for cage cups.
By the second century AD, glass had become a regular part of Roman life. The techniques of casting and blowing stayed largely the same until the empire’s fall. From the second century onward, regional styles became more common. Vessel shapes matched Roman measuring systems. Clear glass grew more popular, reflecting the look of rock crystal.
As Christianity grew, religious themes in glass designs replaced older pagan ones. When the capital moved to Constantinople, glassmaking in the East revived. In the West, glassworking held on thanks to the military’s needs into the fourth century. After that, detailed mold-blown styles became rare.
Over time, Roman glass switched from an elite item to a daily object, shaped by politics, trade, and new methods. The craft helped shape Roman material culture and left behind a wide and lasting legacy.
Expansion and Innovation: Glass Blowing and Its Impact on Roman Society
During the first century AD, a major shift occurred in Roman glass production. Glass blowing became a key technique, allowing craftsmen to create vessels with thinner walls. This reduced the amount of glass needed for each item. The process was also much faster than older methods. Blown vessels required far less finishing work, which meant less time, fewer raw materials, and simpler tools.
Though traditional methods continued during the early years of Augustus and the Julio-Claudian emperors, they gradually faded out. By the middle to late first century AD, glass blowing had almost fully replaced earlier techniques. This change made production cheaper and more efficient. As a result, glass became more affordable and more widely available across Roman society. What was once a luxury item became something common. By the middle of the first century AD, a simple drinking cup made of glass could be bought for a single copper coin.
This growth in production also marked the first time that glass was used to make mosaic tesserae and flat panes for windows. Improvements in furnace technology made it possible to work with molten glass in new ways. As the empire expanded, new cultures and populations came into contact with Roman goods and ideas. These shifts brought new decorative styles into Roman glassmaking, many of them from the East.
The changes that took place in the glass industry during this period came from a mix of three forces: historical developments, technical breakthroughs, and changes in fashion. Glassmakers also borrowed forms and ideas from ceramics, a field that influenced shapes and styles across both crafts.
Glass production reached its highest point at the start of the second century AD. Glass objects were used in every type of household setting. Blowing remained the main method of production, while casting continued on a smaller scale. Vessel types changed over time, but the basic techniques stayed the same.
From the second century onward, styles began to vary more from region to region. Bottles and closed vessels, including containers like unguentaria, often traveled as part of trade shipments. Many of these vessels matched Roman liquid measurement standards, showing how closely tied glassware was to daily life and commerce.
Colored glass became more common as a way to decorate pale or clear vessels. Meanwhile, the shapes of metal containers continued to influence glass design. After Constantine's conversion to Christianity, glass decoration started to shift away from Pagan themes and began to feature Christian images. The move of the imperial capital to Constantinople gave new life to the Eastern glass industry. In the West, Roman military presence helped keep the glass trade active.
By the middle of the fourth century AD, mold-blowing was no longer widely used. It appeared only now and then, marking the slow decline of a once-dominant technique.
Rome Era Glass: Main Ingredients and How They Worked
Roman glass was made by heating two primary materials: silica and soda. Silica, in the form of sand, was the main ingredient. That sand also contained alumina, about two and a half percent, and could include as much as eight percent lime. Across the Roman Empire, alumina levels varied. In the western regions, they reached around three percent, while in the Middle East, they remained noticeably lower.
To turn silica into glass, a flux material was needed to lower its melting point. In Roman times, that flux was always soda, or sodium carbonate. Most soda came from natron, a natural salt found in dry lake beds. Wadi El Natrun in Egypt was the main supplier, though there might have been smaller deposits in Italy.
Silica and soda alone make glass that is actually water-soluble. To stop that from happening, Roman glassmakers included stabilizers, mainly lime or magnesia. In this case, lime was used. It entered the mixture through calcium-rich sand rather than being added separately. It helped the glass remain insoluble.
Roman glass typically contains around one to two percent chlorine. That extra chlorine likely came from added salt, which helped lower the melting point and viscosity, or it was present in the natron used.
How Roman Glass Was Made
Evidence of Roman glass production is limited. Yet, by comparing it to later Byzantine and Islamic glass industries, we know Roman glassmaking was a big deal. By the end of the Roman era, large furnaces were built around tanks that contained molten glass. These furnaces could work for weeks, producing slabs weighing up to eight tonnes, like one found in Bet She'arim. These giant slabs were later broken into smaller chunks and sent to workshops that shaped items like vessels, windows, and decorative pieces. It seems this raw glass was made in a few large centers, not many scattered workshops.
Roman glass factories appear to have chosen their locations based on three needs: large supplies of fuel, access to sand, and natron. Since natron came from Egypt, most workshops were near the eastern Mediterranean coast. Once raw glass was made, it was then shipped across the empire for shaping.
Local small-scale glassmaking has been found in some places, mostly for window glass. But large-scale industrial production likely began after the mid-first century AD. Pliny the Elder mentioned in his work Natural History that molten glass was first used in furnaces around this time. That marks a key shift in Roman furnace technology and glass production.
The Role of Recycling
Roman writers like Statius and Martial pointed out that broken glass was often collected and recycled. Archaeological digs confirm this, with few large intact pieces found at Roman homes. In the Western Empire, recycling was extensive. Broken glass was gathered at local sites and later melted down into new glass. In the eastern empire, recycled Roman glass was even used to glaze pottery. Signs of this recycling appear in the chemistry of glass, with rising levels of metal colorants in reused batches.
Recycling didn’t take place in small crucibles. It happened in cooking pots or larger ceramic tanks. For bigger operations, shops built furnaces around these tanks to melt down large quantities of broken glass.
How Fast Glass Production Grew
Roman glass drawing on Hellenistic techniques began before the first century BC. Initially, glass was a luxury item - think richly colored vessels and small mosaic work. Most items were cast or molded and then finished by hand, so they were expensive. Glass use remained limited until Roman rule stabilized the empire.
In the early first century AD, production exploded. This was fueled by peace under Augustus, easier trade, and stable leadership. Glass vessels started to show up across the empire and beyond, reaching places as far away as India and China. A Roman glass piece dating to the first century BC was even found in China.
Around the same time, glass blowing appeared. This new method allowed makers to form thinner, lighter vessels faster and with less material. Blown glass also needed less finishing. As a result, prices dropped and glass became much more common. By the middle of that century a glass cup could be bought with a single copper coin.
Large-scale production also brought new uses. Small glass tiles, called tesserae, began to appear for mosaics, and the first window panes were made. Molten glass in mid-century furnaces made these developments possible. Decorative styles changed too, blending influences from across the empire.
Raw vs Final Glass Production
Raw glass production happened at a few large central plants. These workshops would fire furnaces for weeks to make big slabs. Secondary workshops across the empire broke those slabs into chunks and shaped them into vessels, windows, or tiles. Glass working took less fuel and lower heat, so it could be done almost anywhere.
By the first century BC, sites in Italy were already producing colorful vessels. By the end of the first century BC and into the first century AD, glassworking hubs had sprung up in Rome, Campania, the Po Valley, and northern areas like Cologne. Those centers grew in the second and third centuries, exporting northward. Cologne still holds thousands of Roman glass pieces today, including luxury items like cage cups and decorative vessels. Even as glass styles changed, glassblowing and casting remained key techniques.
What Changes Came After
By the second century AD, glass was everywhere - in homes, bathhouses, and public buildings. Most glass vessels used blowing. Around the fourth century many showed Christian influences. With the foundation of Constantinople, eastern glassmaking revived. In the west Roman military presence kept the industry alive. Over time colors became more regional, while techniques stayed similar. Glassmaking reached its peak in the early second century and remained stable until late antiquity.
Where Romans Built Glass Workshops
Roman glassmakers chose workshop sites based on three key needs. First they needed large amounts of fuel. Then they needed sand which was the main part of glass. Finally they needed natron to act as a melting aid. Since natron came from Wadi El Natrun in Egypt, most of the workshops were likely near the eastern Mediterranean coast. That location made it easier to ship the clear or lightly colored raw glass to glassworking sites across the empire.
Because few Roman glassmaking workshops have been found by archaeologists, researchers rely on chemical analysis to understand production patterns. The uniform use of Wadi El Natrun natron meant that most Roman glass had a similar chemical makeup. Even though some large chemical studies exist researchers have only recently compared data from different labs and methods. While there are small variations in composition it remains hard to define clear regional production groups.
Recycling Glass in the Roman World
Roman writers, including Statius and Martial, noted that broken glass was regularly collected and melted down again. Archaeologists support this. Finds from homes rarely include large pieces of glass. In the western empire broken glass was gathered at local sites and recycled on a wide scale. In the eastern regions recycled Roman glass even turned up on Parthian pottery, acting as a glaze. Chemical tests show higher levels of metal colorants in recycled glass, confirming its reuse.
Roman glass was not melted in small crucibles. Instead, they used cooking pots for small tasks. For larger amounts they melted glass in big ceramic tanks. In some facilities furnaces were built around these tanks to handle large scale melting.
Roman Glass Working Centers
Glass working was far more common than raw glass making. Shaping glass required lower temperatures and much less fuel. This meant glassworking shops appeared across the empire as it grew. By the end of the first century BC, shops in Rome, Campania, and the Po Valley were producing both blown and cast vessels. Italy became a major center for vibrant colored glassware, reaching peak production in the mid-first century AD.
As the empire expanded in the first century AD, new glassworking sites appeared along trade routes. Cologne (Colonia Claudia Ara Agrippinensium) and other Rhineland centers became important glass hubs, while Syrian glass reached markets as far west as Italy. During this period workshops created different styles of vessels. The Rheinish and northern French glass forms were unique and do not appear elsewhere. Growth continued through the third century AD. Cologne sites expanded greatly. By the third and early fourth centuries glass producers north of the Alps shipped their goods south into northern Italy and across transalpine regions.

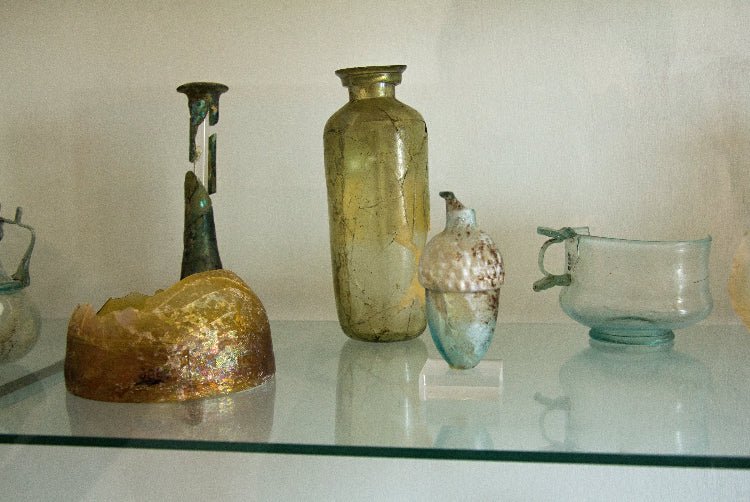

Cologne’s Insane Roman Glass Collection at the Romano-Germanic Museum
The Romano-Germanic Museum in Cologne boasts the largest collection of Roman glass vessels from the first to fourth centuries. It holds over four thousand complete pieces. Among them are luxury glasses like figure shapes, snake-thread designs, cut glasses, and tricolor diatretes. A highlight is the famous fourth century Cologne cage cup. Many drinking glasses boast decorative added drops in contrasting colours. These are called Cologne nubs. The museum’s collection also grows through finds from nearby Roman cemeteries, including Franconian glass. Sites like Aquileia played a key role in spreading glassmaking techniques and in the trade of hollow glass containers. By the fourth and fifth centuries Italian workshops had become the dominant force in glass production.
Early Roman Glass and Its Greek Roots
Early Roman glass followed Hellenistic traditions. It featured strong colours and mosaic patterns. In the late Republican era, makers began new striped wares· They used dozens of monochrome strips or lace like designs. At the time, glass styles varied by region. Translucent coloured fine wares from the early first century were mostly western in origin while later colourless fine wares became more internationally common. These wares marked the first Roman style that broke away from Greek casting traditions. They featured rich, novel colours. Emerald green, dark or cobalt blue, deep blue green, and Persian or peacock blue were the standout shades· Other colours were rare. Emerald green and peacock blue came almost entirely from Romano-Italian workshops and were mostly used for fine goods.
From Bold Shades to Aqua and Clear Glass
In the last thirty years of the first century AD, glass styles changed significantly. Bold colours vanished quickly. They were replaced by aqua and truly colourless glass. While aqua and colourless glass had existed earlier in vessels and mosaic designs, by this time they dominated the blown glass market. Strong coloured cast glass ended during this period. Cast vessels were still made in volume but in aqua or colourless styles. Free blowing and mould blowing techniques became dominant in the first century AD.
Colour Trends in Roman Glass from 70 AD Onward
Around the year 70 AD, colourless glass became the most popular choice for fine tableware. Meanwhile, more affordable glass was crafted in pale tones of blue, green, and yellow. Historians debate whether this change reflects a shift in how people viewed glass. One view suggests that glass gained value on its own and no longer needed to copy gemstones, ceramics, or metals. Another perspective holds that makers aimed to imitate highly prized rock crystal. Pliny the Elder supports the latter idea in his Natural History, writing that the top-quality glass should be transparent and as clear as rock crystal. This view aligns with the continued use of casting methods. Those methods produced thick-walled vessels that could withstand significant cutting and polishing, just like real crystal objects.
Core Formation and Early Glass Shapes
Glassworkers created vessels by first building a core around a metal rod. They wrapped the core in mud and straw. Then they either dipped the core into molten glass or trailed liquid glass over it. Once cooled, the core was removed, and the piece was finished with handles, rims, and bases. These early vessels featured thicker walls, bright colours, and zigzag patterns. They were small, often used for unguent or perfume. This core method stayed popular into the first century BC, even after slumped and cast vessel techniques were introduced earlier.
The core technique connects back to glass’s origins as a substitute for carved gemstones. Glassmakers used gem-carving methods to craft small containers from solid glass blocks or thick cast pieces. They created cameo glass in two or more colours and cage cups. Scholars still believe most cage cup decoration came from cutting, though there is some disagreement.
Blown Glass in Roman Times
Mould blown and free blown glass emerged as significant techniques in the later Roman era. Mould blown glass appeared in the second quarter of the first century AD. These methods would go on to dominate Roman glass making after the late first century AD. A detailed look can be found on the glass blowing page.
Other Roman Glassworking Methods
In addition to mould blown and free blown glass, the Romans used several other methods:
- Cage cup production
- Cameo glass production
- Slumping
- Casting
Each of these methods added to the variety and richness of Roman glass art and utility.
Slumped Glass Sheets and Colorful Effects
Glass sheets made for slumping could be plain, multicolored, or created as mosaic panels. These early techniques foreshadowed later caneworking and millefiori styles but had their own unique methods. Archaeologists have identified six main mosaic glass styles from this period.
Floral and Spiral Mosaic Patterns
To make floral and spiral designs, craftsmen bundled colored glass rods and heated them until fused. Once solidified, they cut the bundle to create discs. These discs were then fused onto a base to form complex patterns. Another method involved fusing two glass strips of contrasting colors, heating them, and wrapping them around a glass rod to form a spiral. The rod was then cut crosswise, and those spiral slices were melted into plates or onto a glass sheet.
Marbled and Dappled Effects
Some marbled or dappled effects appeared naturally when glass plates slumped during heating. But artisans could replicate the look of stones like sardonyx. They did this by arranging spiral or circular bands of alternate colors before slumping. This style often appeared in pillar molded bowls, which are common finds in first century Roman excavations.
Lace Style Glasswork
For lace patterns, colored glass strips were twisted with threads of contrasting color before fusion. This decorative method was popular early on but faded by the middle of the first century AD.
Bold Stripes from Lace Techniques
In the late first century, the lace method evolved. Long pieces of single-colored glass and lace patterned glass were fused into bold striped designs. This technique carried forward the lace tradition in a fresh way.
Even as multicolored vessels became less common after the mid first century, they continued to be made for some time.
Gold Sandwich or Gold Glass
Gold sandwich glass involved precision layering of gold leaf with a design, pressed between two glass layers. This technique began in the Hellenistic period, returned in the third century, and produced mainly roundels. Many survive as plate bottoms from wine cups used on graves in the Catacombs of Rome. Most date from the fourth century into the fifth. They often bear Christian symbols but also pagan and Jewish designs. These cutouts have received extensive study despite not being overly refined in style. A smaller group of third century portraits show high quality workmanship with paint applied above the gold. The same basic method was soon used for mosaic gold tesserae around mid first century in Rome and by the fifth century these tiles dominated religious mosaics.
Other Roman Glass Techniques
Roman glassmaking also included enamel decoration and engraving of glass surfaces. Craftsmen used fine colored powders and carved designs into cooled glass before reheating.
Glass Tesserae and Mosaic Art
From the time of Augustus, broken glass pieces and rods went into mosaics. By the start of the first century, glass tesserae, small, precisely cut tiles, were being made especially for mosaic art. Their colors varied but most were shades of yellow blue and green. They were often used under fountains or for decorative accents.
Early Roman Window Panes
Window glass also began in the first century. The roughest panes came from casting glass into wooden frames sitting on sand or stone. But from the late third century, window glass was made by the muff method. In this process, artisans would blow a glass cylinder then cut it open and flatten it into a flat pane.
Chemistry and Colours in Roman Glass
The pale blue-green hue often seen in early Roman glass is caused by iron II oxide. That natural tint appears in many ancient vessels. Glass makers also used colourless glass in Roman times. They achieved this by adding antimony or manganese oxide. These additives shifted iron II to iron III oxide. Although iron III oxide has a yellow hue, its presence is so subtle that it lets glass appear clear. Manganese became popular in the Imperial period. But antimony gave a truer clear result. In Italy and northern Europe, craftsmen continued using antimony or a mix of both through the third century. This trend may link to the end of Roman hold over Dacia and loss of its stibnite resource.
Amber shades in glass result from iron sulfur compounds. Tiny traces of sulfur, between zero point two and one point four percent, likely entered the glass from impure natron. When combined with iron, around point three percent,those sulfur compounds create warm amber tones. This happens under low oxygen conditions.
Roman artisans could deepen the blue-green shades using copper. They often recovered oxide scale from heated scrap copper to avoid mineral impurities. Adding two to thirteen percent copper intensified the natural aqua shade, shifting it to richer blue or darker green, depending on oxygen levels.
Adding lead into glass containing copper further darkened the green shade.
For stronger purples, they used about three percent manganese under oxidizing conditions.
A vivid royal to deep navy blue came from including just point one percent cobalt. That gave a strong and intense colour.
Powder blue tones were achieved using Egyptian blue.
Opaque red to brown glass, sometimes called haematinum in Pliny’s texts, came from mixing more than ten percent copper and one to twenty percent lead under highly oxygen-poor conditions. This reaction made cuprous oxide particles form inside the glass. Lead helped make the red more brilliant. These red jars are rare and first appeared by the fourth or fifth century on the continent.
White Roman glass came from mixing one to ten percent antimony, often as stibnite. The antimony reacted with lime in the glass and formed tiny calcium antimonite crystals, making it look opaque white.
Yellow glass, used mostly for mosaic accents, was created by adding antimony and lead. Lead pyroantimonate crystals formed and created a bright, opaque yellow effect.
All these colours formed the palette for Roman glass art. Achieving them required technical skill. Yet Roman glass across the empire showed a surprising level of colour consistency.
Colours in ancient glass do not always come from added chemicals. Some hues form after years underground or exposed to air. Metallic ions are the usual culprits but occasionally other chemical species like selenide or cyclic trisulfide ions create unusual red or blue shades.
Physical weathering can also change glass looks. Over time, hydrated silica layers form on the surface. This can lead to crystal bands that look like Liesegang rings. These patterns scatter light and give glass a golden patina.
