Glassblowing: Crafting Molten Beauty

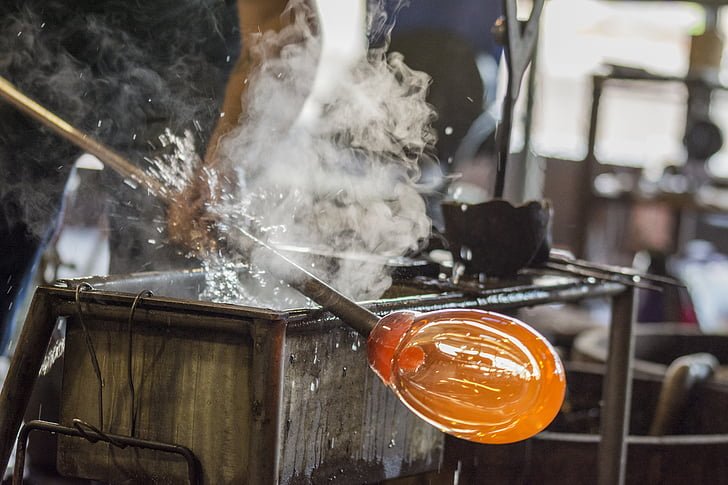

Glassblowing is the art of shaping glass by blowing into molten material. You heat glass until it’s soft and pliable, then puff air through a blowpipe. That inflates a bubble called a parison. Someone who practices this skill goes by glassblower, glassmith, or gaffer. A lampworker works on a smaller scale. They use a torch and often make lab glassware from borosilicate.
Glassblowing started in the middle of the first century BC. Before then, glassworkers had not discovered how to inflate molten glass. They found out that you can expand a blob of hot glass by adding air. Molten glass acts like thick liquid. It holds a shape as it cools because its atoms form a random, bonded network. That structure makes it viscous enough to blow and solidify as it loses heat.
To make glass easier to blow, early glassmakers tweaked its chemistry. They changed the amount of natron, a flux. Vessels made for blowing had slightly less natron than cast pieces. That minor change made the glass stiffer and better suited for blowing. Also, thinner layers of glass cool more quickly than thicker ones. That quick cooling raises their viscosity. It helps create a blown piece with even thickness, avoiding weak spots.
Glassblowing was first invented by Syrian craftsmen from Hama and Aleppo between 27 BC and 14 AD. Roman artisans soon copied the technique. They used blowpipes to inflate molten glass into bubbles. Tube blowing (blowing glass through a pipe) revolutionized glassmaking. It let artisans explore new forms in a way casting and core-forming never had. Before long, glassblowing replaced older methods.
Even earlier, we see proof of blown glass in the Indian subcontinent. Craftspeople used glassblowing to form cavities in Indo-Pacific beads over 2,500 years ago. They wrapped molten glass around a blowpipe, created a bubble, and then pulled the glass into tubes. Those tubes became beads.
Glassblowing and the rise of the Roman Empire in the first century BC grew together. Rome embraced the craft, even though its citizens weren’t allowed to trade under Augustus. Despite that, glassblowing spread across the empire. Workshops sprang up everywhere. On the eastern borders, the Phoenicians built large glass studios in what is now Lebanon and Palestine, and on Cyprus. They planted glassblowing deep in the Mediterranean world.
Mold-Blown Glass and the Spread of Glassblowing in the Roman Empire
Ennion was one of the most well-known glassmakers from Lebanon during the Roman period. He became famous for his mold-blown glass vessels. These weren’t simple pieces. They had detailed panels, complex forms, and rich decorative designs. The level of detail showed just how skilled eastern Roman glassworkers were. Ennion wasn’t the only one. Makers like Jason, Nikon, Aristeas, and Meges also crafted mold-blown pieces. Their work gives us some of the earliest examples of glassblowing in the eastern parts of the Roman Empire.
Eventually, glassblowing made its way to Egypt. There’s a poem written on papyrus from the 3rd century AD that talks about it. Around this time, Roman control over the Mediterranean had a major effect on how glass was made. Older Hellenistic methods like casting, core-forming, and mosaic fusing started to fade. Glassblowing replaced them.
Some of the first blown pieces from Hellenistic times were small bottles for perfume and oil. These were found at ancient workshops on the Greek island of Samothrace and in Corinth, on mainland Greece. They date back to the 1st century AD.
As time went on, Phoenician glassmakers took their skills west. By the middle of the 1st century AD, they had set up glassblowing workshops in Italy. Rome quickly became a major center for the craft. Other areas in Italy followed, including Campania, Morgantina, and Aquileia. The range of blown glass was wide. They made everything from perfume containers called unguentaria to cameo glass, dining ware, and even window panes.
Even though Roman law didn’t allow these craftsmen to travel freely, some still moved north. They started building workshops past the Alps, in what is now Switzerland. From there, they spread the craft into parts of northern Europe, including present-day France and Belgium.
One of the most productive glassblowing hubs in Roman times was in Cologne, Germany. It stood on the Rhine River and got going by the late 1st century BC. Archaeologists have found stone and terracotta molds from those workshops. That means they were using mold-blowing, much like in the east.
Cologne’s workshops produced all sorts of glass. They made flagons and jars with ribbed designs, and perfume bottles stamped with the letters CCAA or CCA. That stood for Colonia Claudia Agrippinensis, the Roman name for Cologne.
In what’s now Slovenia, at ancient sites like Poetovio and Celeia, glassmakers also turned out a large number of blown vessels. Many were blue-green in color. The pieces included handled bottles, bowls with collars, and beakers with indents. These finds show just how far and wide glassblowing had spread across Roman Europe.
Early Evidence of Glassblowing Tools
We have only bits and pieces of actual tools to prove early glassblowing. In Avenches, Switzerland, archaeologists found fragments of clay blowpipes, also called mouthblowers, from a late first century AD workshop. People made these from clay before metal was available. In Spain’s Mérida and Croatia’s Salona, researchers found hollow iron rods, blown glass shards, and glass waste. These date to around the fourth century AD and show the switch to metal blowpipes.
Glassblowing Through Medieval Europe
After the Roman Empire fell in the fifth century AD, glassblowing lived on in Europe through the medieval era and into the Renaissance. Early medieval Franks used corrugated molds and claw-style decorations. In the Rhine and Meuse valleys, plus Belgium, craftsmen shaped drinking vessels to resemble animal horns. Between the late sixth and mid-seventh centuries, Byzantine glassmakers in Jerusalem applied mold-blowing to add Christian and Jewish symbols. In Islamic regions like Samarra, molds created glass with facets, relief, and linear-cut patterns.
Renaissance Italy and Venetian Cristallo
The Renaissance in Italy reignited the glass industry. Venetian glassblowers on Murano used mold-blowing to make cristallo (a clear, refined glass). By the late seventeenth century, techniques like cylinder and crown blowing produced flat glass for windows. Glassblowing’s reach had grown far. It was practiced not just in Europe, but also in China, Japan, and Islamic countries.
Nøstetangen: A Norwegian Glass Tradition
The Nøstetangen Museum in Hokksund, Norway, shows glassmaking in its old form. From 1741 to 1777, the Nøstetangen glassworks made table-glass and chandeliers styled like German and English pieces. Their methods stuck close to older traditions.
The Modern Studio Glass Movement
A turning point arrived in 1962 with Harvey Littleton and Dominick Labino. They taught workshops at the Toledo Museum of Art. There, people experimented with melting and blowing glass in small studio furnaces. Littleton pushed for these setups in individual artists’ spaces. That idea sparked a global studio glass movement. Today it includes noteworthy artists like Dale Chihuly, Dante Marioni, Fritz Driesbach, and Marvin Lipofsky. Many schools and institutions now help artists learn and share glassmaking gear.
Teamwork in Complex Glassmaking
Large or complex glass pieces need more than one person. They require a tight workflow with several glassworkers timing steps precisely. This has led artists to work together in both short-lived and more permanent teams.
Glass in Modern Industry
New technology now lets us shape glass with machines. That precision makes glass ideal for high-tech uses. It shows up in semiconductors, lab equipment, life sciences, industrial parts, and medical tools.
Free‑Blowing
Free‑blowing emerged soon after glassblowing began. It ruled glassmaking from its start in the mid‑1st century BC until the late 1800s. Artists still use it today to form unique, creative pieces. The process starts by gathering molten glass on the end of a blowpipe. The glassblower then puffs short breaths into it. That forms a thin, elastic inner skin that mirrors the outer skin cooling from the furnace. With that, the blower can quickly inflate the gather into a lump of glass and shape it however they want.
At Toledo Museum of Art, researchers tested ancient free‑blowing using clay blowpipes. They found pipes about 30–60 cm (12–24 in) long work best. They’re easy to handle, reusable, and help the blower move the glass well. Skilled glassblowers twist the pipe, swing it, and control heat as they blow. They can form almost any vessel like drinking glasses, windowpanes, or artistic sculptures.
A famous showcase of free‑blowing is the Roman‑era Portland Vase. Glassmakers studied how it was made. They gathered a blob of blue glass on a pipe, then dipped it in white molten glass. They blew it into a round bubble, then stretched it into the vase shape. The white layer remained over the blue core, creating its iconic design.
Mold‑Blowing
Mold‑blowing came next, in the early second quarter of the 1st century AD. Here, a glob of molten glass is placed in a wooden or metal mold. When the blower inflates the glass, it takes the mold’s shape and texture. This makes molding less about skill and more about the mold’s design.
There are two kinds of molds. A single‑piece mold lets you pull the finished piece straight out. That method was used for everyday items and storage jars. Multi‑piece molds fit together from panels. They let makers add more complex textures and patterns.
One good example is the Roman leaf beaker at the J. Paul Getty Museum. It was molded in three parts, each panel showing vertical plant reliefs. Researchers Taylor and Hill recreated mold‑blown vessels using three‑piece molds made of various materials. They found metal molds, especially bronze, produce sharper, higher relief patterns in the glass than wood or plaster molds.
How Mold-Blowing Changed Glassmaking
The mold-blowing method lets artisans produce glass items quickly and in volume. It sparked mass production and made glass widely available.
Melting Glass: Intense Heat and Precision
Turning raw materials into glass starts around 1,320 °C (2,400 °F). At that heat, molten glass glows white hot. It’s left to “fine out,” a stage where air bubbles rise and escape. After that, the furnace temperature drops to about 1,090 °C (2,000 °F), and the glass changes to a bright orange glow.
Most glass shaping happens between 870 and 1,040 °C (1,600 to 1,900 °F). But soda-lime glass stays soft and workable even down at 730 °C (1,350 °F). After shaping, pieces undergo annealing, cooling slowly, in the 371 to 482 °C (700 to 900 °F) range to prevent stress cracks.
The Three-Furnace Workflow
Glassblowing relies on three linked furnaces. The first holds the crucible of molten glass, called simply “the furnace.” The second, the “glory hole,” reheats pieces between shaping steps. The final furnace, the “lehr” or annealer, cools the glass slowly over hours or days. This gradual cooling stops cracks and breakage. In the past, all three furnaces sat within one building, arranged in descending temperatures.
Essential Glassblowing Tools
A glassblower uses several key tools. They include:
The blowpipe. That’s the tube used to pick up molten glass and blow into it. First, the tip is preheated and dipped into the furnace. The molten glass attaches like honey on a dipper.
Next is the marver. A flat marble slab, now usually steel, on which the gather is rolled. Marvering cools the outer skin and shapes the glass.
Once air is blown into the pipe, a bubble forms. The glassblower can add more molten glass to expand the shape. When the main body is done, they shape the base. Then they transfer the piece onto a punty - a solid rod - to form the top or add details.
The bench holds the blower, tools, and rails where the pipe or punty spins during work.
Blocks are soaked fruitwood ladles. They help shape and smooth hot glass early on. Newspaper pads soaked in water can also shape the glass by hand.
Jacks resemble large tweezers. They refine shape in later stages. Paddles, made of wood or graphite, flatten areas like bottoms. Tweezers pull details or thin bits.
Finally, glassblowers use two types of shears: straight shears cut in lines, while diamond shears, when opened, cut off larger sections cleanly.
Patterning Blown Glass with Color and Design
There are lots of ways to add color and patterns to blown glass. One way is to roll hot glass in powdered color or frit (small chunks of glass). For more intricate designs, artisans use cane, which are rods of colored glass, or murrine, rods cut across to reveal designs inside. These colored pieces get arranged flat, then a molten glass bubble is rolled over them to pick up the pattern.
One advanced technique is reticello. It uses two cane bubbles, each twisted opposite ways. Then they’re combined and blown into the final shape. The result is a delicate and precise lattice pattern, admired for its complexity.
Lampworkers handle smaller scale glasswork. They used to use alcohol lamps and breath or bellows to shape glass rods and tubes right at their bench. These crafts into lab glassware, beads, or tiny glass sculptures. In the late 1960s, Hans Godo Frabel turned this craft into art. Artists like Milon Townsend and Robert Mickelson followed. Today’s lampworkers use oxygen and propane or natural gas torches. Modern torches let them shape both soft glass and borosilicate, which is used in scientific work.
Scientific glassblowers often use torches with multiple flames and lathes for shaping glass or fused quartz in special projects. That allows precise control for lab instruments and delicate art pieces.
You can buy ancient glass art here:
